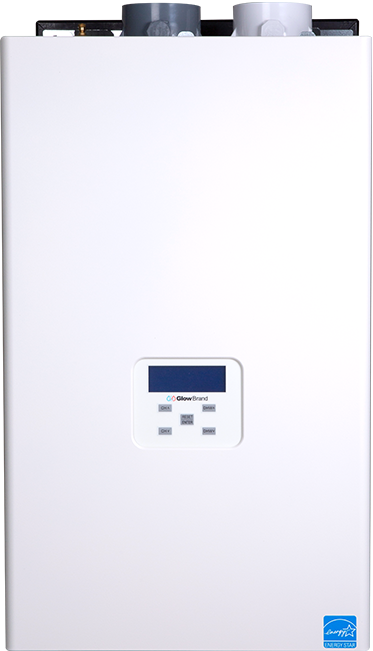

B85 + B120 + B160
Condensing Boiler
Glow Brand ASME certified condensing boilers for heating are ultra-efficient and compactly designed, with an AFUE rating of 95%. These units are fully modulating at 10 to 1. PVC 2 inch venting up to 100 feet.

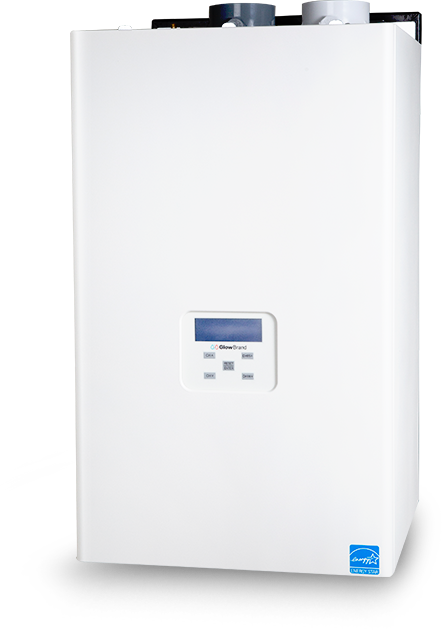

Features
The B85, B120 and B160 are built on experience, and incorporate the latest technological know-how to produce space heating.
Each unit has an efficient and compact design, allowing for ease of installation in both new construction and retrofit applications.
The units operate through simplified controls and features, are energy efficient and environmentally friendly.
Units are available in different capacities and burner modulation affording flexibility in application while meeting varying needs for space heating.
The B85, B120 and B160 are designed for compatibility with a wide choice of accessories and can be used for space heating with air handlers and in-floor heating. Can also be used for domestic hot water through an indirect storage tank.
Glow Brand™ condensing boiler can operate with multiple types of heating systems: hydronic systems incorporating radiators, fan coils or in-floor heating, while maintaining high efficiency levels and comfort.
Each includes an advanced self-diagnostic system providing the user with a simple way to set and verify equipment operation on a back-lit display. Diagnostics are easily identified through symbols.

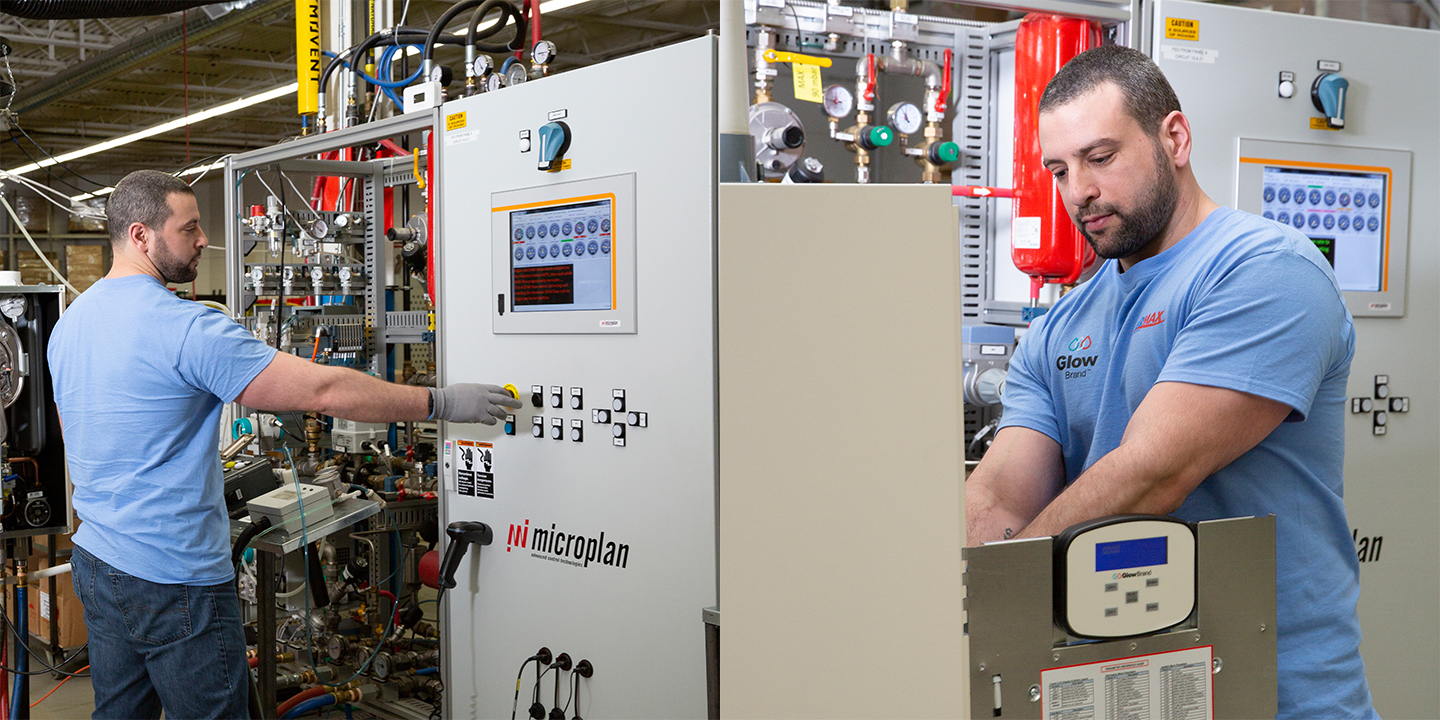

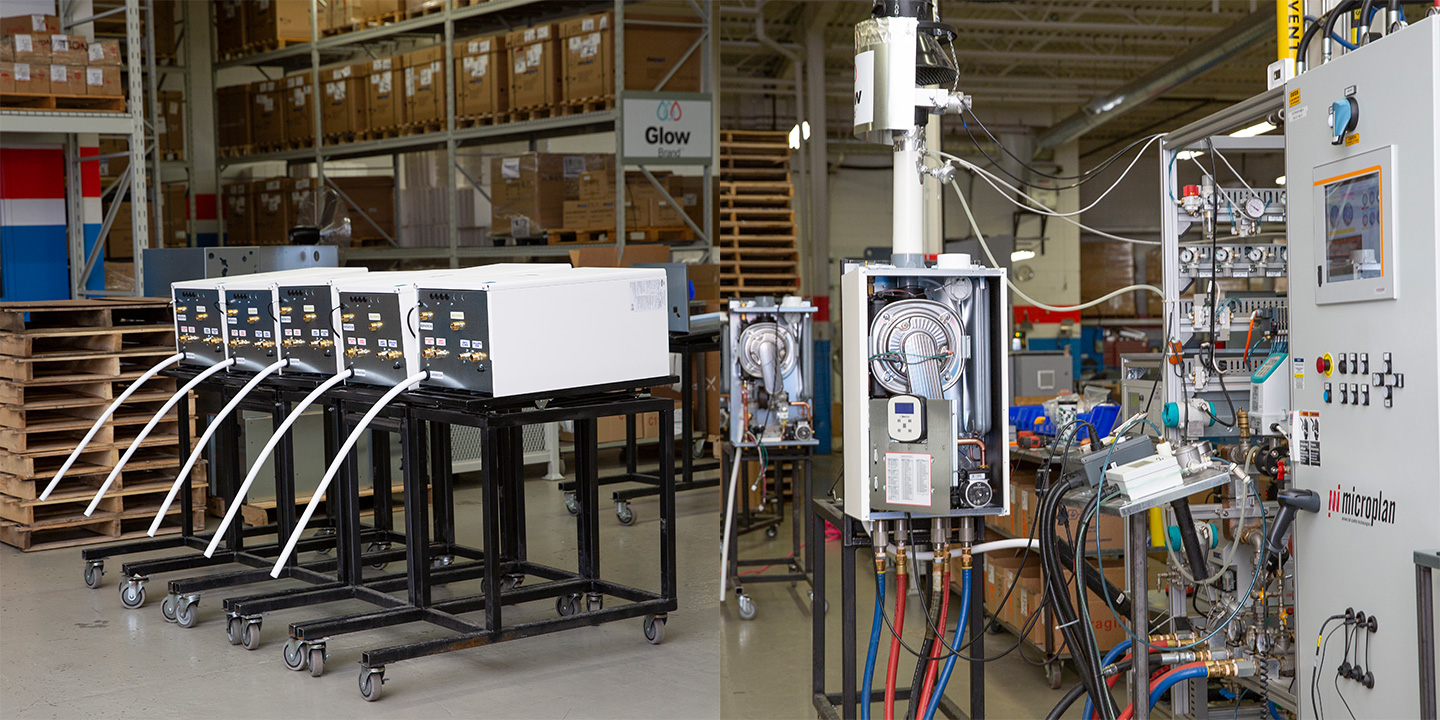

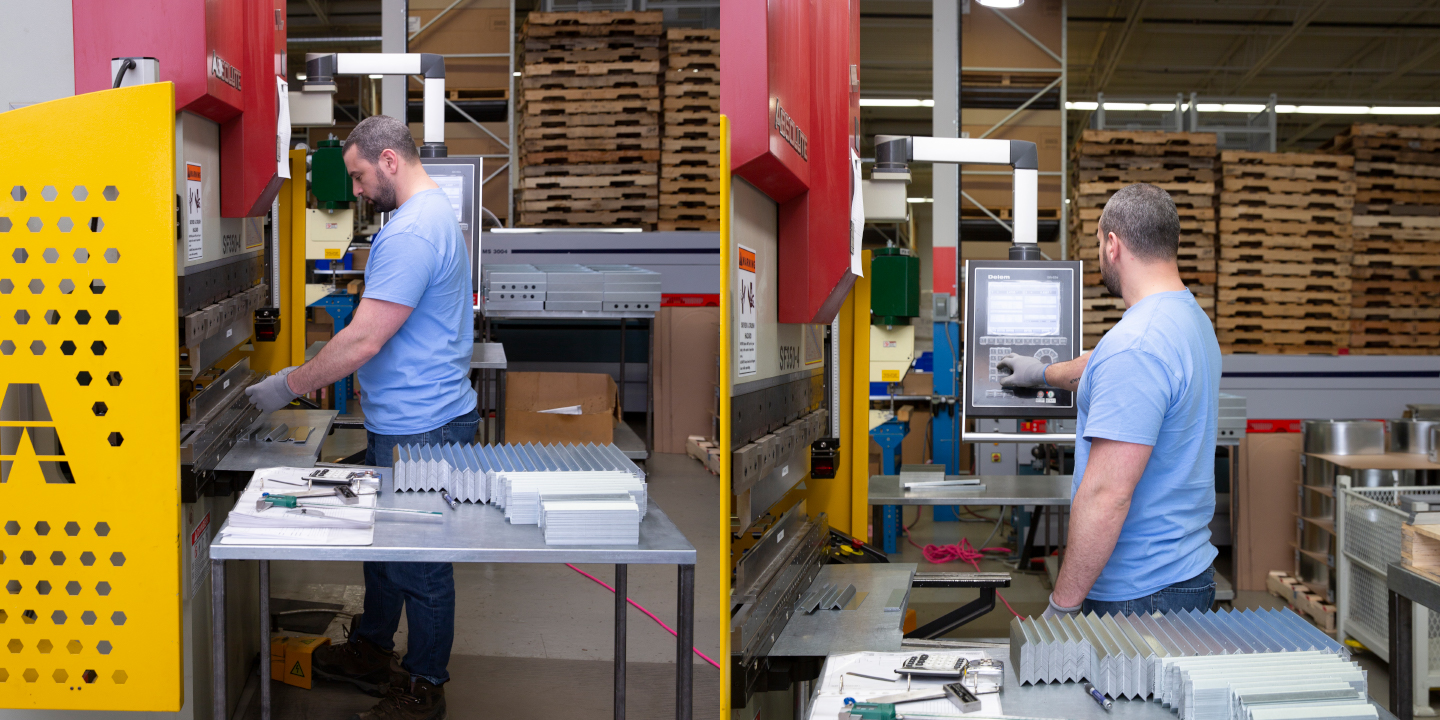

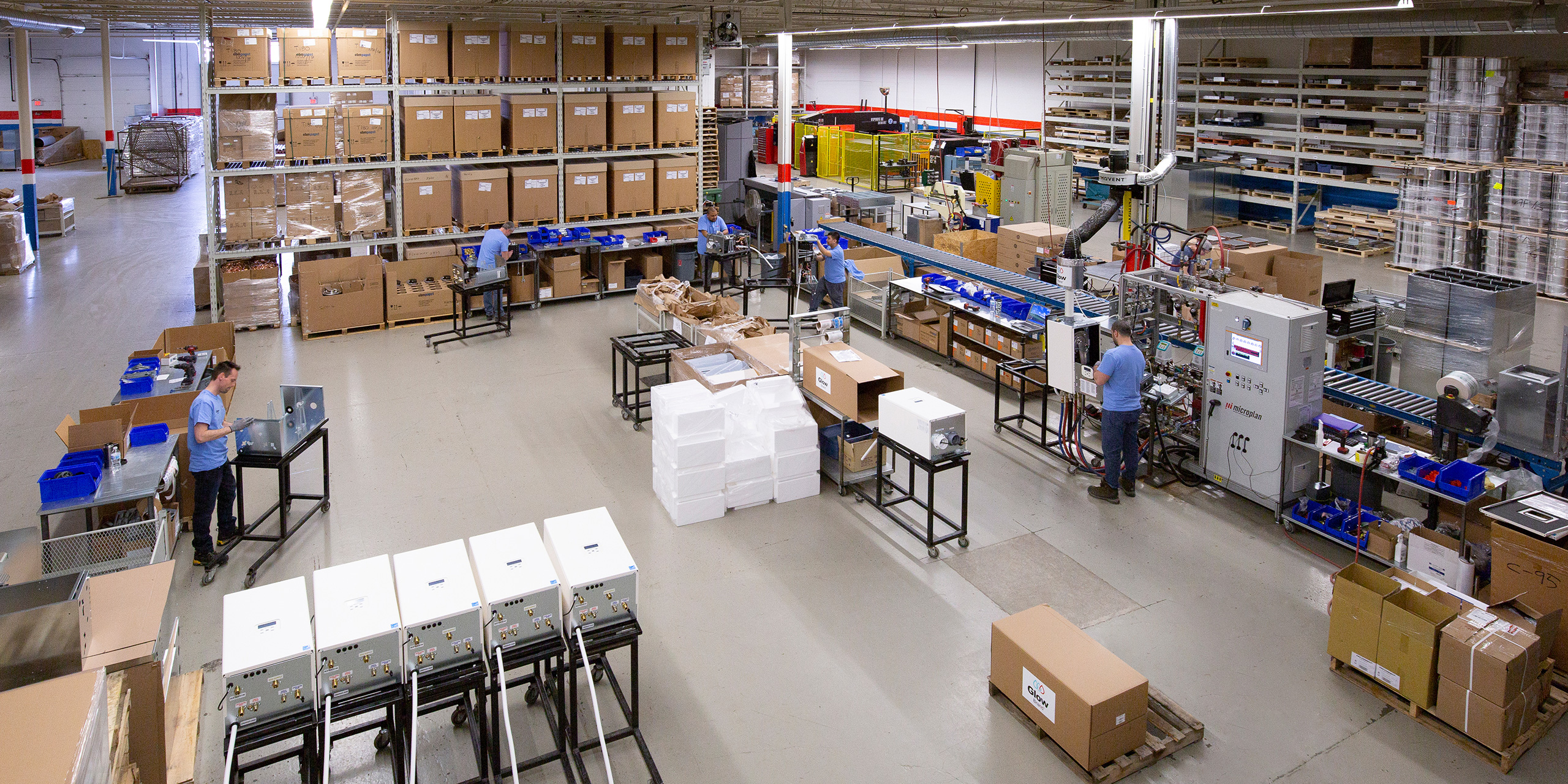

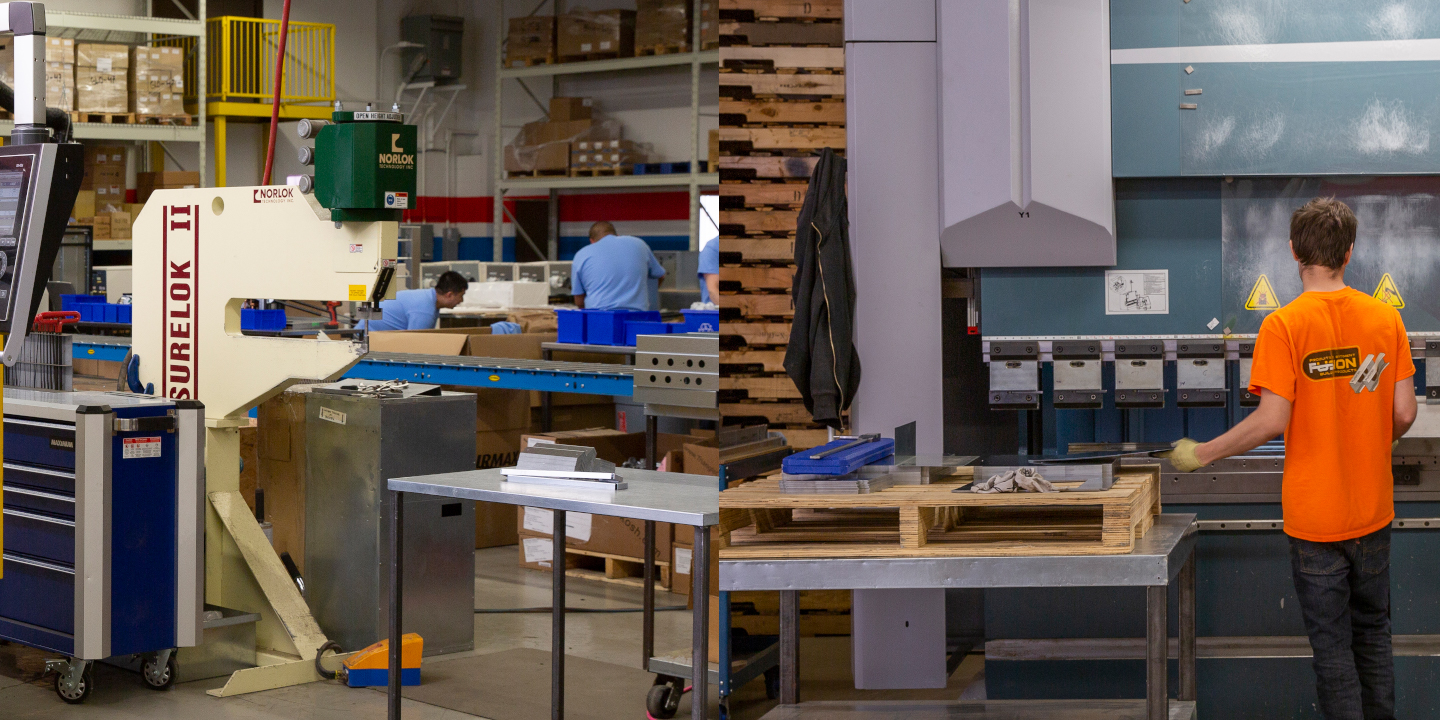

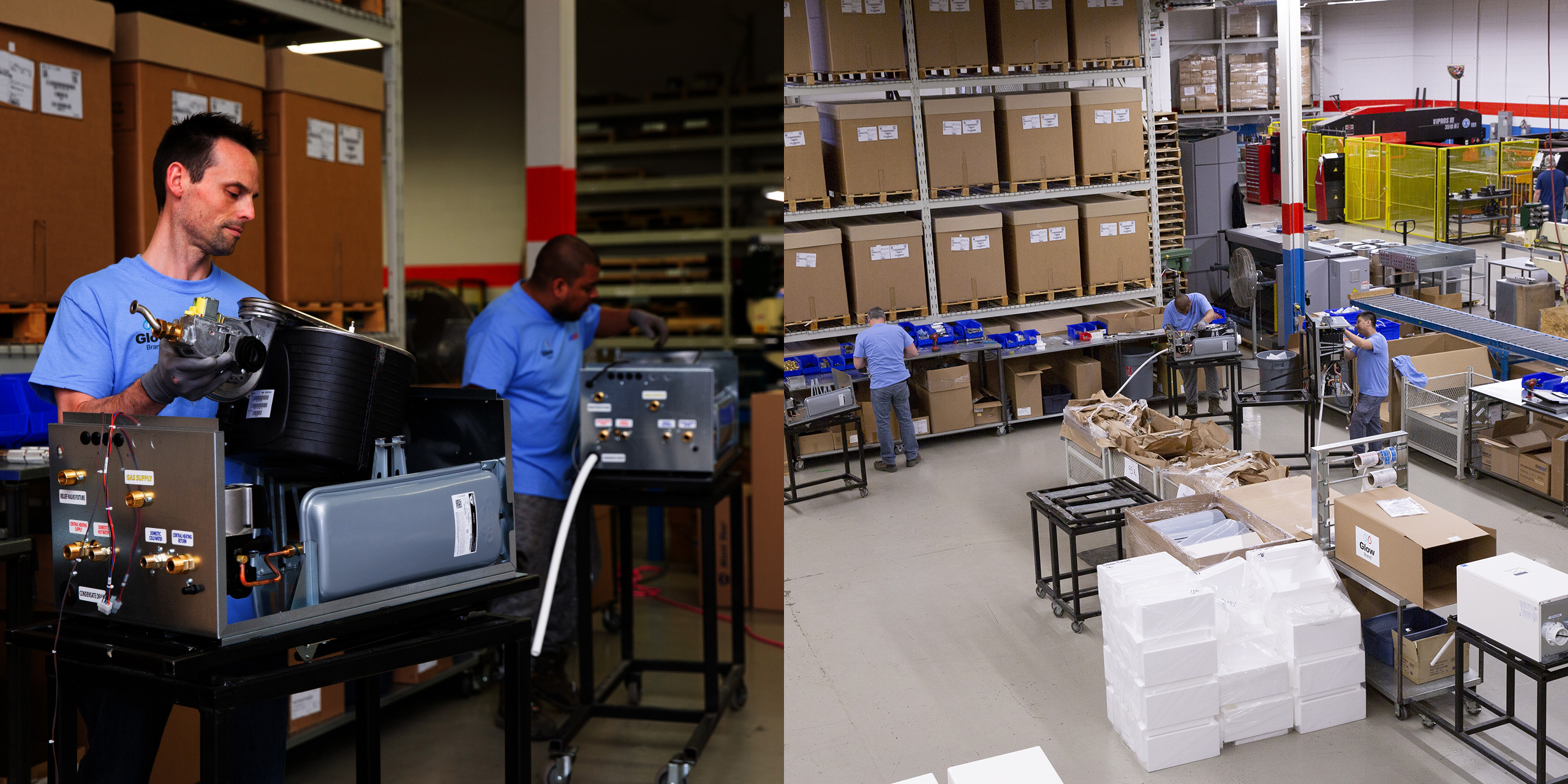

Manufactured in Canada

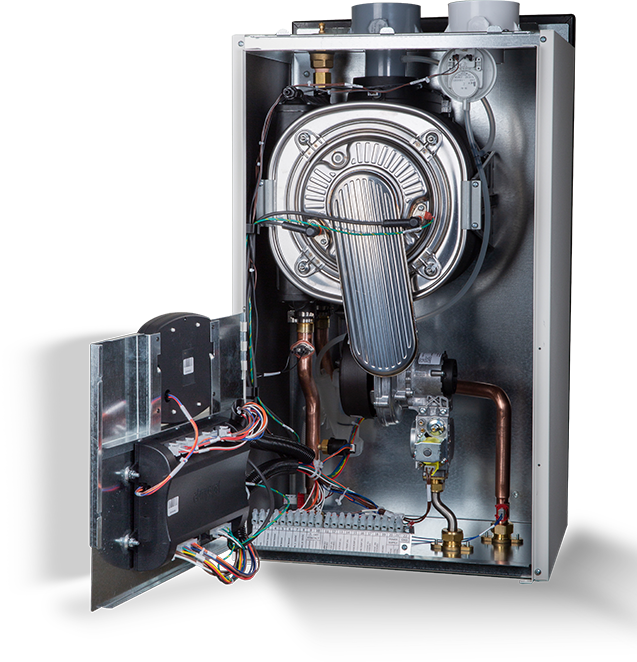

Benefits
• Single stainless steel burner
• Condensing
burner efficiency
• Electricity savings of ECM motor
• Home heating and a small draw on DHW system
• Priority system temperature controlled by zones
• 10-1 Modulation
• 95% A.F.U.E
• Supports multiple configurations & applications
• Range of products to meet heating & DHW demands
• Various installation options to minimize space
requirements
• Build quality of Glow Brand™ (all metal parts)
• Innovative design for flow detection
•
Warranty service
• Local service & support
• Glow Brand™ products are manufactured to a high
specification and in compliance with relevant standards.
• The design of the Glow Brand™ product line
addresses three key areas: reliability, performance and
serviceability
• For the home builder, home owner &
service technician, experience has shown that these key areas
play a substantial role in minimizing the life cycle costs for
residential boiler systems.
| Technical Data Specifications |
B85 (NG) |
B85 (LP) |
B120 (NG) |
B120 (LP) |
B160 (NG) |
B160 (LP) |
|---|---|---|---|---|---|---|
| Central Heating Input - Min MBH(KW) | 9.6 (2.8) | 13 (3.8) | 16.2 (4.7) | 18.5 (5.4) | ||
| Central Heating Input - Max MBH(KW) | 87.8 (25.7) | 121.2 (35.5) | 162.5 (47.6) | 165.9 (48.6) | ||
| A.F.U.E | 95% | 94% | 95% | 94% | 95% | |
| Min Gas Pressure - Inch w.c. | 3.5 | 8 | 3.5 | 8 | 3.5 | 8 |
| max Gas Pressure - Inch w.c. | 10.5 | 13 | 10.5 | 13 | 10.5 | 13 |
| Power(120Vac/60Hz) - Watts @ full fire not including pump(s) | 50 | 45 | 60 | 56 | 92 | |
| Min Operating Pressure - Space Heating - psig | 10 | |||||
| Max Operating Pressure - Space Heating - psig | 30 | |||||
| Min Water Temperature - Domestic Hot Water - ºF(ºC) | 95 (35) | |||||
| Max Water Temperature - Space Heating - ºF(ºC) | 171 (77) | |||||
| Min water flow requirement through Heat Exchanger(gpm) | 3 | 6 | 7 | |||
| Max Equivalent Vent Length 2" (each side) - Feet | 100 | 40 | ||||
| Max Equivalent Vent Length 3" (each side) - Feet | 125 | |||||
| Vent/Air-Intake Pipe Domestic - Inches(mm) | 2(51) or 3(76) | |||||
| CHWater Connections - NPT, in. | 3/4 | |||||
| Gas Connection - NPT, in. | 3/4 | |||||
| Dimensions HxWxD - Inches(mm) |
31.2x16.9x14.0 (793x430x356) |
31.2x16.9x18.0 (793x430x457) |
||||
| Weight (empty) - lbs(Kg) | 105(47.6) | 125(56.7) | ||||
Glow B85 Dimensions
Glow B120/B160 Dimensions
